Mohammad, Ghalambaz, Behzadian Moghadam, Kourosh ORCID: https://orcid.org/0000-0002-1459-8408, Rocca, Antonino La, Babaei-Mahani, Roohollah, Keshmiri, Amir and Talebidadehsardari, Pouyan (2026) Latent heat thermal energy storage in a modular flat plate energy storage with wedge fins. Journal of Energy Storage. ISSN 2352-152X

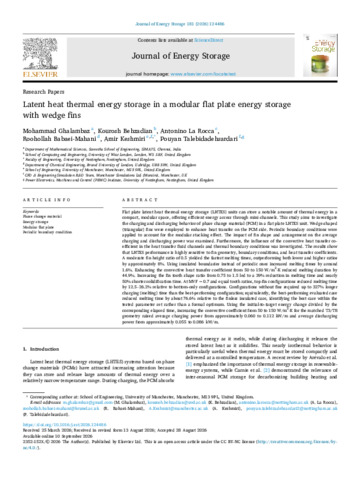

Preview

PDF Behzadian MoghadamK_Latent hit thermal energy_VoR.pdf - Published Version Available under License Creative Commons Attribution Non-commercial. Download (36MB) | Preview

Abstract

Flat plate latent heat thermal energy storage (LHTES) units can store a notable amount of thermal energy in a compact, modular space, offering efficient energy access through mini-channels. This study aims to investigate the charging and discharging behavior of phase change material (PCM) in a flat plate LHTES unit. Wedge-shaped (triangular) fins were employed to enhance heat transfer on the PCM side. Periodic boundary conditions were applied to account for the modular stacking effect. The impact of fin shape and arrangement on the average charging and discharging power was examined. Furthermore, the influence of the convective heat transfer coefficient in the heat transfer fluid channels and thermal boundary conditions was investigated. The results show that LHTES performance is highly sensitive to fin geometry, boundary conditions, and heat transfer coefficients.

A moderate fin height ratio of 0.5 yielded the fastest melting times, outperforming both lower and higher ratios by approximately 8%. Using insulated boundaries instead of periodic ones increased melting times by around 1.6%. Enhancing the convective heat transfer coefficient from 50 to 150 W/m2⋅K reduced melting duration by
44.9%. Increasing the fin tooth shape ratio from 0.75 to 1.5 led to a 39% reduction in melting time and nearly 50% shorter solidification time. At MVF = 0.7 and equal tooth ratios, top-fin configurations reduced melting time by 12.5–26.2% relative to bottom-only configurations. Configurations without fins required up to 327% longer charging (melting) time than the best-performing configuration; equivalently, the best-performing evaluated case reduced melting time by about 76.6% relative to the finless insulated case, identifying the best case within the tested parameter set rather than a formal optimum. Using the initial-to-target energy change divided by the corresponding elapsed time, increasing the convective coefficient from 50 to 150 W/m2⋅K for the matched T3/T8 geometry raised average charging power from approximately 0.060 to 0.112 kW/m and average discharging power from approximately 0.055 to 0.086 kW/m.

Item Type:	Article
Identifier:	10.1016/j.est.2026.124486
Keywords:	Phase change material; Energy storage; Modular flat plate; Periodic boundary condition
Subjects:	Construction and engineering
Date Deposited:	29 Sep 2026
Dates:	Date Publication status 28 August 2026 Accepted 10 September 2026 Published Online
School, department or research centre:	School of Computing and Engineering
Keywords:	Phase change material; Energy storage; Modular flat plate; Periodic boundary condition
URI:	https://repository.uwl.ac.uk/id/eprint/15448
Sustainable Development Goals:	Goal 7: Affordable and Clean Energy	Sustainable Development Goals:	Goal 11: Sustainable Cities and Communities	Sustainable Development Goals:	Goal 13: Climate Action
